ZBOX

Glasses-free 3D display systems

Impressively realistic 3D representations that set you apart from competition.

3D GL FREE Button

Product presentation
Visualization
Interactive applications
Games
Education

Fairs
Events
POS/POI
Corporate signage
Museums

Purchase or rent
Plug & Play
27″ – 85″ screen sizes

Landscape or Portrait
Display or stele systems
Content creation

Auto-Stereoscopy

3Dimensional vision means natural vision.

ZBOX displays and steles are ideal for displaying products and objects three-dimensionally and for several people at the same time. The content seems to float in the display, sculptural and palpable.

Features

3d-icon

Auto-Stereoscopic Display

9 views, approx. 25 viewing zones. Multi-layer lenticular composite structure.

4k

QFHD Resolution

We only use 4K panels with 3840×2160 pixels. The 3D resolution is HD per eye.

Landscape_Portrait

Landscape or Portrait

Our ZBOX systems are available in landscape as well as portrait format.

Plug_n_Play

Plug ‘n Play

Each ZBOX system is delivered ready to connect, incl. WIN 10 PC and 3D Player software.

ioPlayer2

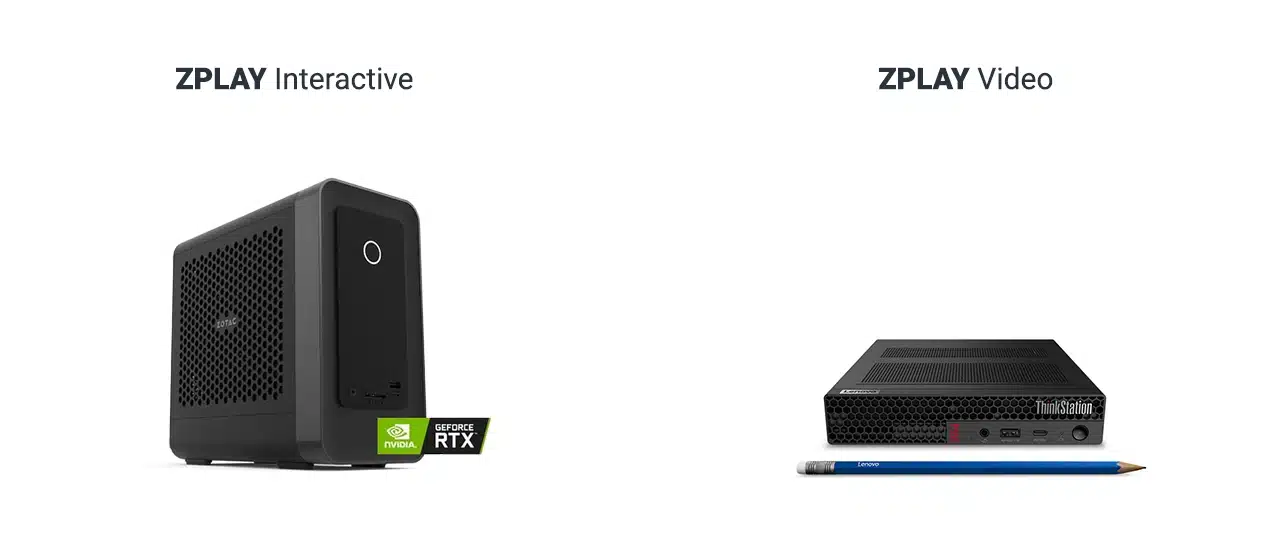

AS3D Playback PC

Plays AS3D videos and images in different formats and codecs. Autostart and playlist functionality.

CMS

3D Content Management System

Available with pre-installed 3D CMS client. ZBOX can be loaded and controlled via online access.

Product variants

CLASSIC
STELE
CMS
RENT
INTERACTIVE
CLASSIC
STELE
CMS
RENT
INTERACTIVE

ZBOX CLASSIC

Multiview display in portrait or landscape format in sizes 27″, 55″, 65″ and 85″. Incl. Windows Playback PC and our 3D Media Player software ioPlayer for displaying 3D videos and pictures.

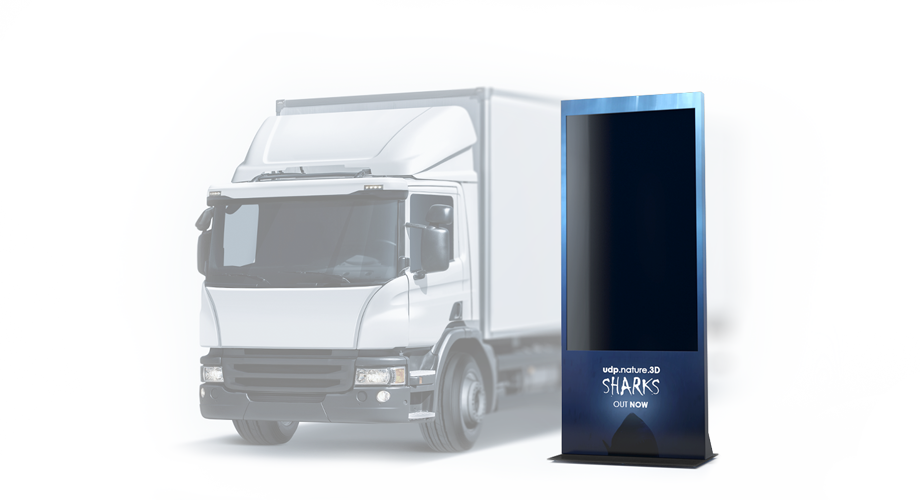

ZBOX STELE

The ZBOX systems 65″ Portrait and 85″ Portrait are also available as media steles. Robust metal body and safety glass. Incl. all ZBOX CLASSIC features.

ZBOX CMS – Content Management

All ZBOX systems are available as CMS variants including 3G/4G router, IP socket and pre-installed and configured CMS client. Content upload, transfer & management as well as system monitoring are possible via online access to our CMS server.

ZBOX RENT – Systems for rent

ZBOX systems up to 65″ are also available for rent. Individual stele design upon request!

ZBOX INTERACTIVE

All ZBOX systems are available as interactive versions with powerful graphics system and Unity3D plugin license.

MultiView AS3D Display

3D what? Functionality explained easily…

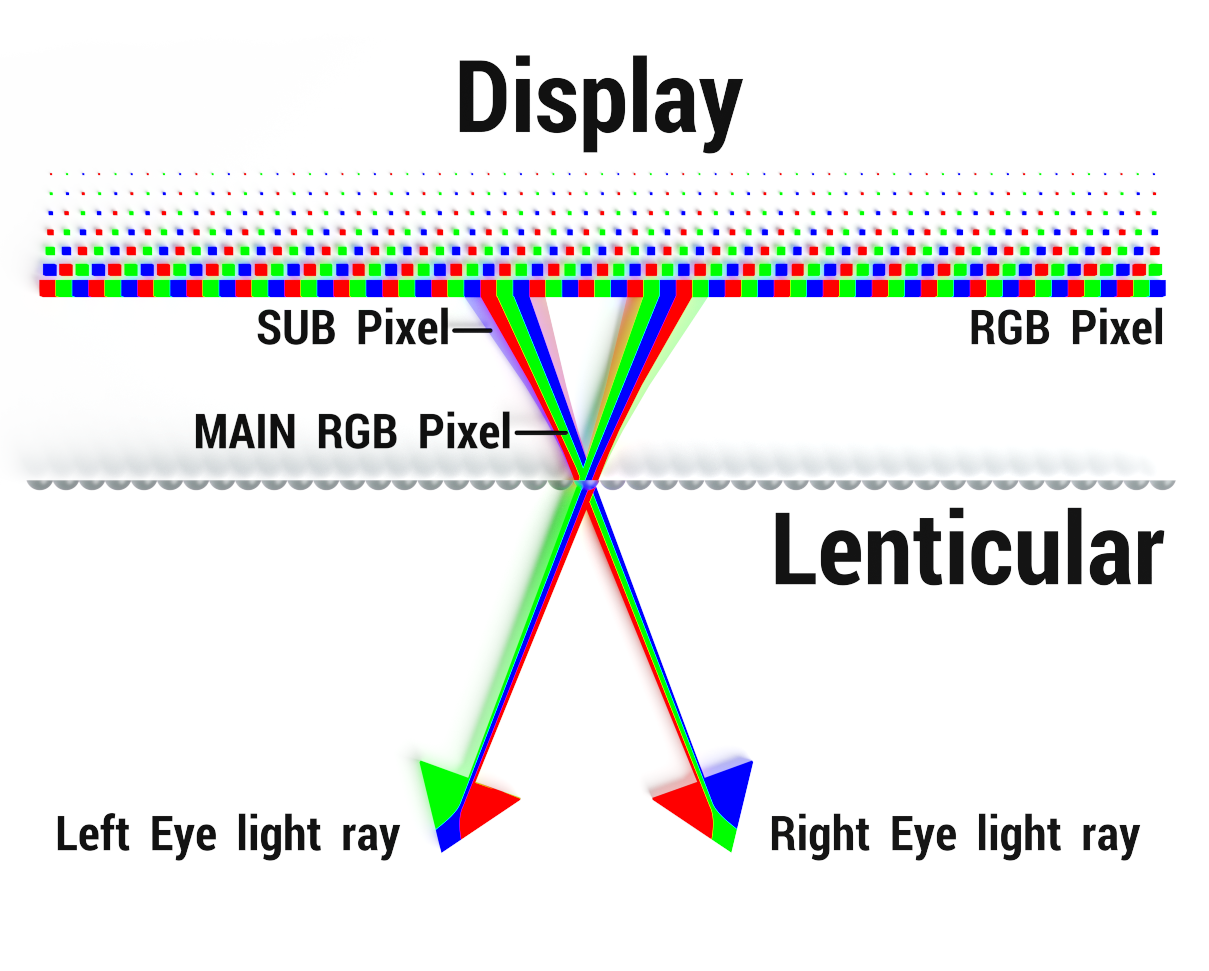

3D displays that do not require the use of glasses or other aids are referred to as Autostereoscopic 3D (AS3D) Displays. The images used in this 3D technology contain several perspective views of the same scene (MultiView), which are seen through a lenticular lens applied to the display panel, so that the right and left eye are presented with different perspectives – just like in reality.
This creates spatiality and, as a result, the impression that objects protrude from the display or can be looked into it. As a result, several viewers can perceive three-dimensional content simultaneously and from different viewing angles.

ZBOX AS3D Display Funktionsweise
ZBOX AS3D Display 3D Volumen

3D inside the ZBOX

Use and Best Practice

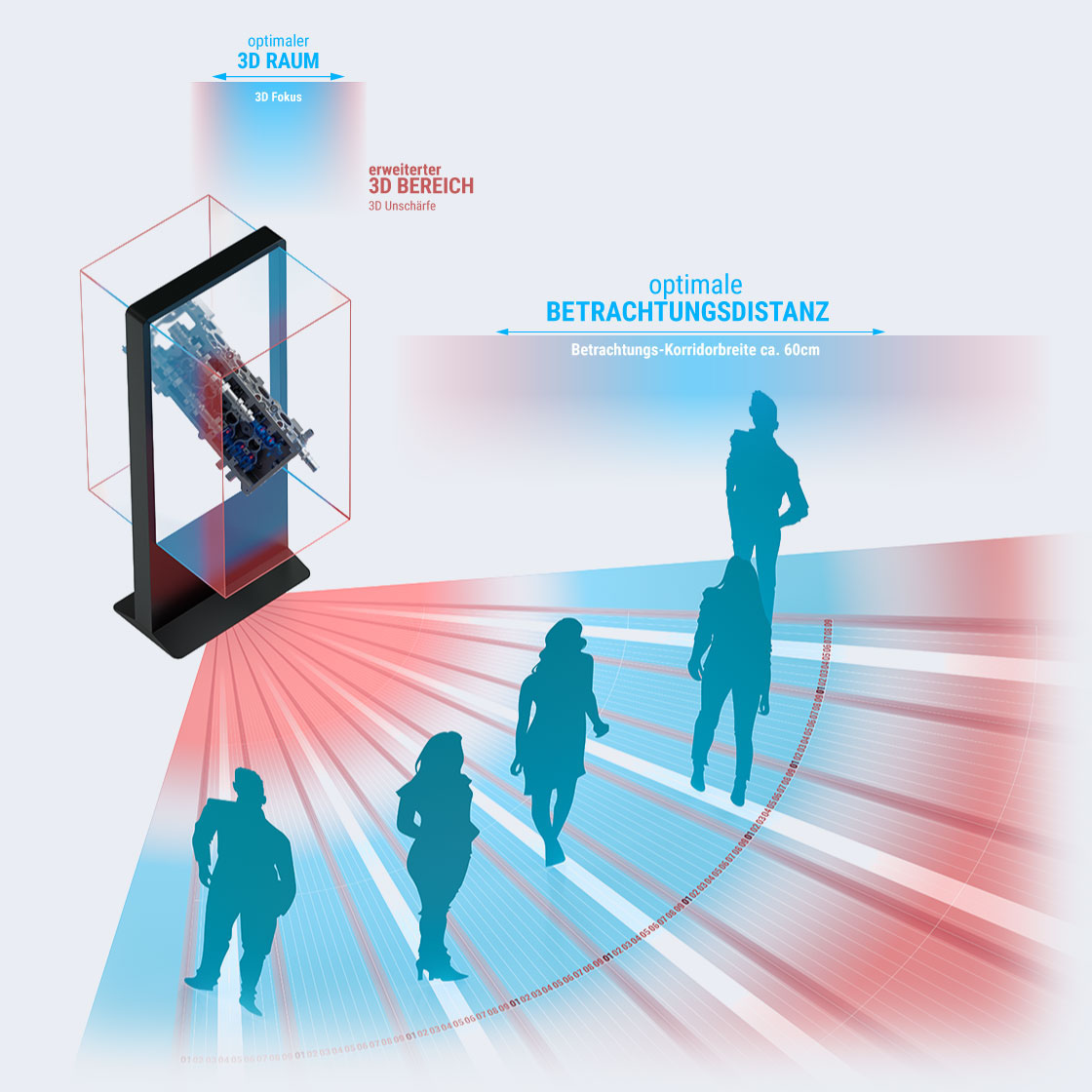

The ZBOX displays create a virtual box. In addition to the 2D dimensions of a display X and Y, the ZBOX adds the third dimension Z, without which spatial perception would not be possible. However, the spatial volume generated in this way not only extends into the display, but also 50% in front of it. The overall depth of the ZBOX corresponds approximately to the edge length of the short display side.

The best 3D effects are achieved by a floating placement of the virtual object in the middle of the ZBOX and a well structured background.

ZBOX Services

Beratung

Consulting

You have questions about the ZBOX? No problem. Give us a call. We will be happy to advise you.

FlightCase

Flight Case

All ZBOX systems come in a practical flight case (except stelae)

Logistik

Logistics

We organize the transport to you.

Content

Content

We create content according to your wishes. Watch our content references

Installation

Installation

We set up ZBOX steles or install ZBOX displays at your site.

Support

Support

You need help with one of your systems? We provide support by telephone or remote access.

ZBOX Content

Tailor-made content creation

The content for the ZBOX must be produced in the so-called 3D MultiView format, in most cases using 3D animation. For interactive applications we support the widely used Unity Realtime Engine. However, real images or more exotic 3D data such as DICOM or MRT images can also be displayed. The processing of existing CAD data sets is also possible.
Whichever of the possibilities you choose: Our experienced team of 3D artists, including autostereoscopy professionals from the beginning of this technology, as well as experienced, creative minds from 3D animation, is one of the best in this still young industry. Benefit from it!

Content Packages

Production_A
Production_B
Production_C
Production_D
Production_F
Production_E
VIDEO
BASIC
VIDEO
PRO
VIDEO
CUSTOM
INTERACTIVE
BASIC
INTERACTIVE
PRO
INTERACTIVE
CUSTOM
VIDEO
BASIC
VIDEO
PRO
VIDEO
CUSTOM
INTERACTIVE
BASIC
INTERACTIVE
PRO
INTERACTIVE
CUSTOM

ADVANCED ZBOX ANIMATION

VIDEO BASIC plus product/object animation or cut animation for the product/object interior view.
Data basis: 3D product/object data
Output Format: MultiView 3D Video | Non-Audio

Price: from 3.000 €

STANDARD ZBOX ANIMATION

Rotating, floating but in itself static product or object against a textured background with 2D headings and explanatory texts.
Data basis: 3D product / object data
Output format: MultiView 3D Video | Non-Audio

Price: from 1.500€

HEADLINE VIDEO PRO

Text Video Pro

INDIVIDUAL ZBOX ANIMATION

VIDEO PRO plus custom 3D product/object creation and animation.
Data basis: NONE | Your idea | Reference photos | tec. Drawing | DICOM & MRT
Output Format: MultiView 3D Video | Non-Audio

Price: by arrangement

STANDARD ZBOX APP

Floating but in itself static product or object against a textured background. Can be rotated and zoomed over all axes.
Data basis: 3D product/object data
Output Format: Unity 3D Windows Application | Non-Audio
Control: Mouse & Keyboard

Price: from 2.000 €

ADVANCED ZBOX APP

INTERACTIVE BASIC plus product/object animation or section animation or layer for selecting the visibility for the object interior view.
Data basis: 3D product/object data
Output Format: Unity 3D Windows Application | Non-Audio
Control: Mouse & Keyboard

Price: from 3.500 €



INDIVIDUAL ZBOX APP

INTERACTIVE PRO plus plus customized 3D product/object creation and animation.
Data basis: NO | Your idea | Reference photos | tech. Drawing | DICOM & MRT
Output Format: Unity 3D Windows Application | Non-Audio
Control: individual e.g. gesture control

Price: by arrangement
