SOFTWARE

Software makes the difference

Glasses-free 3D display systems require specialized software to display 3D content. Depending on the type of content – pre-rendered videos or real-time 3D application – and 3D format, different programs are required.

APPLICATION AREAS

Video

ioPlayer 2.0
ZBOX 3D-Media Player

The ioPlayer is the versatile video playback system for the ZBOX. With the player you can play the classic 9-view videos and pictures on the different ZBOX displays. The features of the player include specific 3D settings, playlist control, autostart function, live input and commandline functionality.
ZBOX

Stereoscopic Player
ZVIEW 3D-Media Player

Stereoscopic Player is THE video player for stereoscopic videos and images of all kinds. The player can play all major stereo input formats. The player features include specific 3D settings, playlists, folder playback, autostart, as well as live input and commandline functionality.
ZVIEW
You can either create 3D videos and renderings for display on ZBOX or ZVIEW yourself using the tools in the TEMPLATE section, or you can contract us to create the content.

Live Link

ZLINK

3D without workarounds - directly from CAD and simulation software
ZLINK video abspielen
Play Video

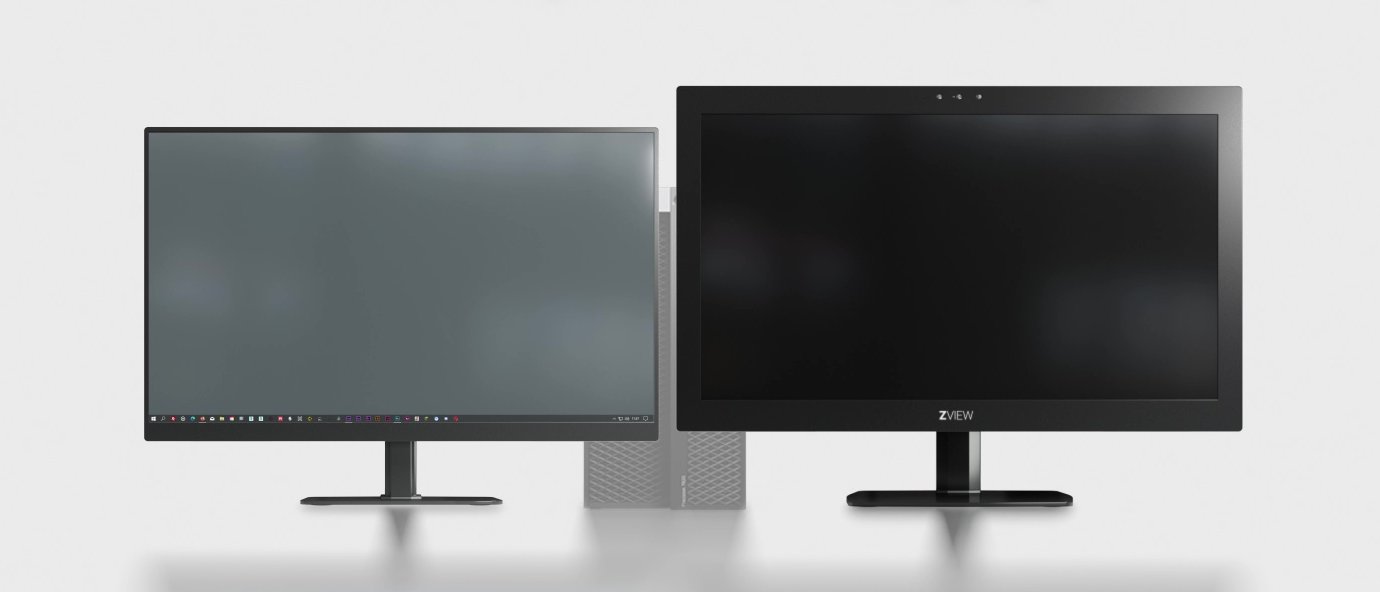

With ZLINK you not only make your CAD software capable of 3D without glasses, you also extend it to a sleek presentation tool. While you control the complex surface of your application and design the project on your 2D display, your customer or colleague moves independently through the glasses-free 3D presentation on a connected ZVIEW display. And this with maximum comfort via gamepad or SpaceMouse, without any disturbing GUI elements. In addition, ZLINK enables a true-to-scale and in the Z-axis undistorted 3D display, which reproduces the geometry of the 3D data realistically. Additionally, the imersive viewing is increased by the head-tracking, which lets you look around objects. Take a look at the following video!

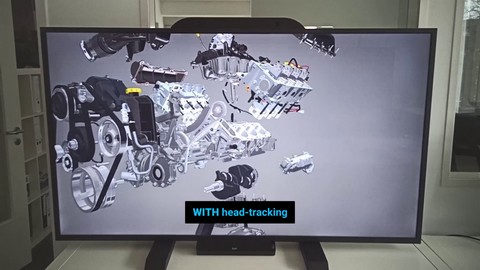

ZVIEW 65" autostereoscopic 3D display with an engine exploded into its component parts.
Play Video
ZLINK supported programs

ReflectZ

Unity Reflect Viewer for ZVIEW
ZVIEW-65-Display mit Architekturszene in Unity Reflect in brillenlosem 3D
Play Video
Unity Reflect is a real-time bim product from Unity Technologies that connects to Autodesk Revit, Navisworks, SketchUp and Rhino
Logos der CAD und BIM Softwareprogramme Autodesk Revit, Autodesk Navisworks, SketchUp und Rhinoceros

“Unity”, Unity logos and other Unity trademarks are trademarks or registered trademarks of Unity Technologies or its affiliates in the United States and other countries. All other names or trademarks are trademarks of their respective owners.

Create real-time 3D experiences for ZVIEW, VR & AR and more from your BIM data. Unity Reflect helps you win more projects, perform immersive testing, and teach design and construction – all with Unity’s ZVIEW-compatible BIM coordination software. Unity Reflect is connected live to your design tool. Any changes you make in Revit, Navisworks, SketchUp or Rhino are automatically updated in the ReflectZ viewer. Multiple developers and engineers working on different parts of a model can merge their data sets into one Unity Reflect project. The ReflectZ Viewer is also capable of displaying your model at different scales on a ZVIEW display. Scale perception is only possible on stereoscopic systems like ZVIEW. So you can display your data either 1:1 in life size or as a “table model” in 1:100 scale. Just as with ZLINK, the display is geometrically correct and undistorted at any scale, making it possible to experience the impact of architecture long before it is built.

Interactive

unity CREATOR Logo

unity CREATOR

ZBOX/ZVIEW 3D Camera Plugin for Unity
Screenshot der Software-Oberfläche von unity pro mit Demo-Szene und dem 3D-Kamera-Plugin "unity CREATOR" von United Screens

Interactive applications from A-Z for all needs. Unity CREATOR brings your projects and models to life with breathtaking glasses-free 3D experiences on ZVIEW and ZBOX. Benefit from the power of the unity real time engine and display your existing 3D data as it is: spatially! Use OBJ or FBX for the import to unity. Alternatively the plugin Pixyz is recommended for the import of all common CAD formats. With just a few clicks you can process complex models in unity and bundle them for interactive display on ZVIEW or ZBOX.

To display finished Unity CREATOR applications, you only need a Unity DISPLAY license.

a green blue capital letter M made of triangles and gradients

ModelViewer

ZBOX/ZVIEW 3D Model Viewer
Screenshot of the software surface of the 3D Model Viewer of United Screens with JAVA Gold Artifact
Play Video

Our Unity-based ModelViewer is a cost-effective and easy-to-use solution for viewing 3D model sets in high quality.
Prepare your models in Unity yourself and export them as Unity assets for use in ModelViewer. Or send us your 3D datasets and we will prepare them for you. In the viewer you have the possibility to use your own backgrounds as well as your logo.

FUNCTIONS

display of several models
categorizable in 4 sets
move / rotate / scale
animation & auto rotation
axis limitation
SpaceMouse & mouse/keyboard

Templates

3D Camera Templates

Scenes with ready-made 3D camera rigs
User Interface Ansichten von 3D Animationsprogrammen Cinema4D, Blender, 3dsMax und Unity 3D, welche Stereo-Kamera Rigs zeigen.

With our 3D camera template scenes for the most common 3D animation programs like Autodesk® 3dsMax, Maya, Maxon® Cinema4D or Blender you can create immersive 3D animations for ZBOX and ZVIEW in no time at all without having to deal with the necessary details for correct camera settings. Please contact us for sending you the templates.

Programs & Presets

ZVIEW compatible programs

Overview Stereo Rendering Plugins and Link Software

3D programs from various fields can create stereoscopic images compatible with ZVIEW by using appropriate plug-in render engines or stand-alone rendering software. In addition, some programs can already render natively, i.e. without extension, in stereo or can even display the viewport stereoscopically. Some programs are also capable of interactive display in real time, others are able to present your 3D data stereoscopically using our software ZLINK or ReflectZ presented above.
Here you find the overview:
